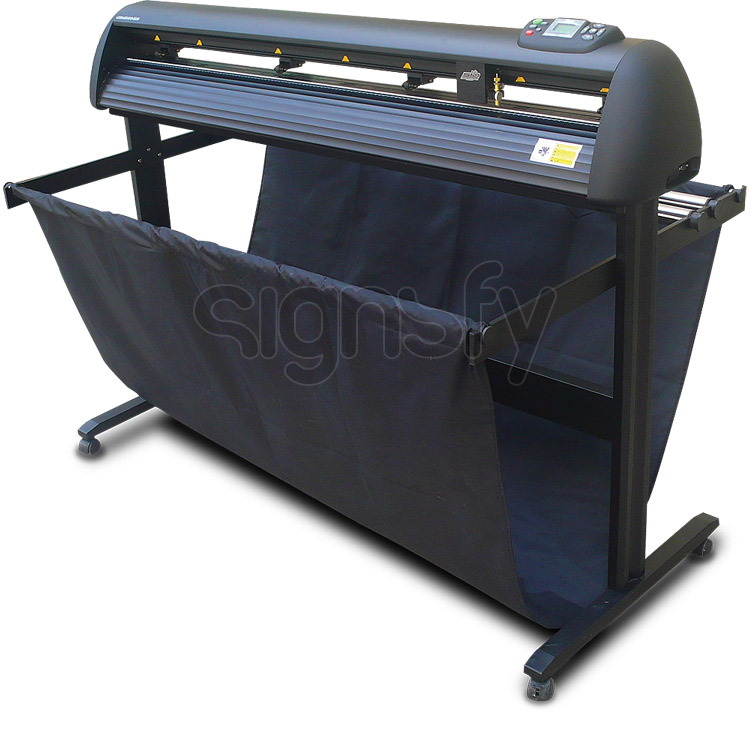

Vinyl Cutter SID 2000-120 Cutting Plotter


The Vinyl Cutter SID 2000-120 Cutting Plotter is the most attractive and cost effective line of plotters in the market. Economic and fast,Vinyl Cutter SID 2000-120 Cutting Plotter is going to get the job done right first time, every time.

TheVinyl Cutter SID 2000-120 Cutting Plotter have the ability to contour cut and they also include our award winning SID Flexi 8 software, so you are ready to work right out of the box. TheVinyl Cutter SID 2000-120 Cutting Plotter has been exclusively designed for precision in sign-making production.

Simplicity and efficiency for all your vinyl cutting needs

  • Feature Icon
    up to
    950
    mm/s
  • Feature Icon
    up to
    1
    mm

The SID 2000-120 Vinyl Cutting Plotter is one of the most attractive and cost effective plotters in the market. Economic and fast. The 2000-120 Cutting Plotter is going to get the job done right first time, every time.

The SID 2000-120 Cutting Plotter has the ability to contour cut and it also includes our award winning SID Flexi 8 software, so you are ready to work right out of the box. The SID 2000-120 Vinyl Cutting Plotter has been exclusively designed for precision in sign-making production.

SID 2000-120
Max. media width51.1″ (1,300mm)
Max. cutting width48″ (1,220mm)
Max. cutting speed37.4″/s (950mm/s)
Max. cutting thickness1/32″ (1mm)
MainboardHigh Speed Arithmetic Microprocessor • 4 MB memory cache
Control panel7″ x 3.5″ • 10 silica gel buttons
DriverDigital DC • Servo motor
DisplayHigh resolution LCD
Drawing instructionHP- GL DMPL
Pressure50g – 800g (160 adjustable digital grades)
Mechanical precision0.014 mm
Repeatable precision0.014 mm
InterfaceSerial • USB
Power supplyAC110V / 50 Hz ~ 60Hz
Positioning modelBounded system • random origin point setting
Working modelRoller
Operational Temperature35º – 95º F – Relative humidity 30% – 70%
Equipment dimensions60.2″ x 10.8″ x 10.6″
(1,575 x 265 x 270mm)
Stand dimensions13″ x 4.5″ x 55.5″
(330,2 x 114,3 x 1,409.7mm)
Package dimensions60.2″x 10.8″ x 10.6″
(1,575 x 380 x 430 mm)
Equipment weightNet: 38.6lb (17.5 kg)
Gross: 56lb (25.4 Kg)
Stand weight31 lb (14.06 Kg)
