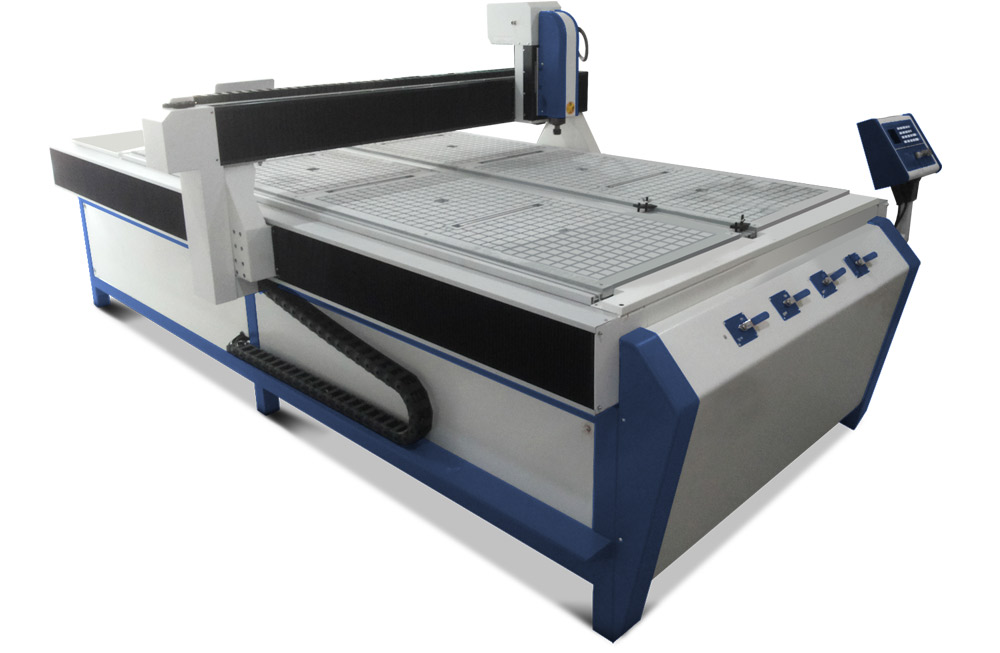

CNC Router SID Thor 2513 ECO
The SID THOR 2513 ECO is a 3D CNC router designed for cutting, engraving and routing applications for a wide variety of materials such as acrylics, plastics, wood, aluminum and sheet metal. With its modern design, ease of use and high performance Camera mounted on the head of the CNC Router machine you can adjust the cutting path enabling accurate cut-outs of digitally printed images.
Modern design, ease of use and high performance
The SID THOR 2513 ECO is a 3D CNC router designed for cutting, engraving and routing applications for a wide variety of materials such as acrylics, plastics, wood, aluminum sheets.
With its modern design, ease of use and high performance, the SID THOR 2513 ECO 3D CNC Router is an ideal investment for businesses that are looking to utilize the latest in quality routing technology, while broadening their portfolio of services and increasing their profit margins.
Dust and Residue Extraction System* (Optional)
| SID THOR 2513 ECO | |
| Precision | +/- 0.05 mm |
| Spindle power | 2,200 W |
| Max. cutting depth | 4.3″ (110 mm) |
| Max. spindle rotation | 24,000 rpm |
| Max. lateral speed | 984″/min (25 m/min) |
| CCD Camera System | Camera system with high performance mounted on the head of the CNC Router machine |
| Table dimensions | 53.5″ x 119″ (1,360 x 3,030 mm) |
| Max. working size | 51″ x 98.4″ x 4.33″ (1,300 x 2,500 x 110 mm) |
| Electrical consumption | 3000 W |
| Electrical Power | AC 220 ±10% / 50/60 HZ |
| Equipment dimensions | 70.5” x 126” x 57.5” (1,790 x 3,200 x 1,460 mm) |
| Equipment weight | 1,974 lb (850 kg) |
