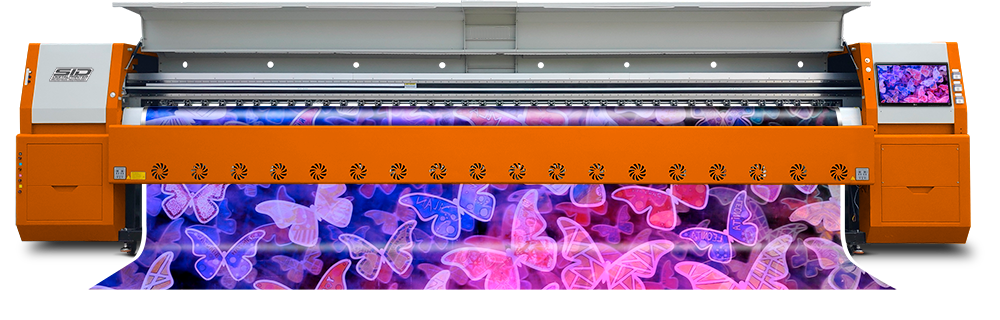

SID Mercury Alpha Series, Solvent and Eco-solvent Printer
New SID Mercury Alpha: High production, Short lead time for Signage in general
Signage in general. High production an short lead time!
up to1440dpi
up to6printheads
up to4,380sq.ft/h
- Signage in general
- High production
- Short lead time
Up to 6 Seiko Alpha Printheads | 1024 nozzles
| MERCURY ALPHA 320 | MERCURY ALPHA 500 | |
| Printhead | 1024 nozzles • variable dots • 25 pl | |
| Number of Printheads | 2, 4 or 6 | 4 or 6 |
| Resolution | Up to 1440 dpi | |
| Ink | Solvent or Eco-solvent | CMYK | 2 or 5 liters per color | |
| Max. printing width | 126″ (3,200mm) | 205″ (5,200mm) |
| Auto feeding/take-up system | Max. Media Roll Weight 176 lbs (80 kg) | |
| Media | Banner, mesh, vinyl, perforated vinyl, canvas, polyester fabric, back-lit film, etc | |
| Print Speed | Draft (2 passes) Up to 4,251 sq.ft./h (395 m²/h) Standard (3 passes) Up to 2,981 sq.ft./h (277 m²/h) Quality (4 passes) Up to 2,238 sq.ft./h (208 m²/h) Hig Quality (6 passes) Up to 1,560 sq.ft./h (145 m²/h) Backlit (8 passes) Up to 1,173 sq.ft./h (109 m²/h) |
Draft (2 passes) Up to 4,380 sq.ft./h (407 m²/h) Standard (3 passes) Up to 3,067 sq.ft./h (285 m²/h) Quality (4 passes) Up to 2,303 sq.ft./h (214 m²/h) Hig Quality (6 passes) Up to 1,603 sq.ft./h (149 m²/h) Backlit (8 passes) Up to 1,205 sq.ft./h (112 m²/h) |
| Cleaning System | Positive Syphoon system and individual color purge controls | |
| Heating and cooling system | Pre, middle, post-heaters and cooling fans | |
| RIP Software | PhotoPrint OEM or MainTop RIP. FlexiPrint 19 Optional | |
| Voltage | AC 220 V • 50 / 60 Hz | |
| Equipment dimensions | 191” x 42” x 62” (4,845 x 1,070 x 1,585 mm) |
275” x 41” x 63” (6,980 x 1,050 x 1,600 mm) |
| Package dimensions | 197” x 45” x 73” (5,000 x 1,140 x 1,860 mm) |
283” x 53” x 73” (7,200 x 1,350 x 1,860 mm) |
| Equipment weight | 1,433 lbs (650 kg) | 3,328 lbs (1,510 kg) |
