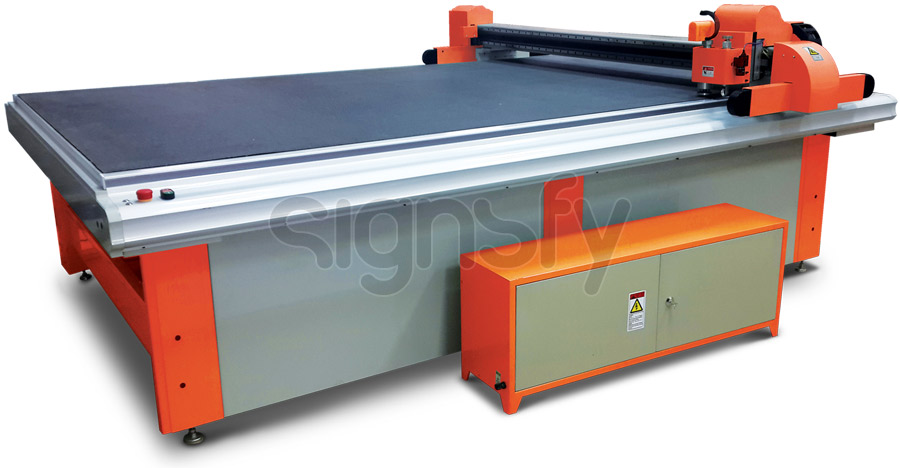

SID Katana 2516, Digital Flatbed Cutter


The state of the art SID Katana 2516 Digital Flatbed Cutter will streamline your graphic display finishing, packaging and POP production. With a maximum speed up to 47”/sec (1,200mm/sec), the USA manufactured high-end four axis motion control system guarantees precision with a cutting tolerance of 0.039” (1mm).

Professional graphics digital cutting system

  • Feature Icon
    up to
    1200
    mm/sec
  • Feature Icon
    .
    0.2~45
    mm

The state of the art SID Katana 2516 Digital Flatbed Cutter will streamline your graphic display finishing, packaging and POP production. With a maximum speed up to 47”/sec (1,200mm/sec), the USA manufactured high-end four axis motion control system guarantees precision with a cutting tolerance of 0.039” (1mm).

Its Panasonic servo motor and single drive, linear guideway, synchronized belt and lead screw, together with its innovative self-lubricating and automatic maintenance systems, provide the reliability needed for high volume industrial production.

To ensure accurate contour cutting, the Katana includes an integrated CCD digital camera, a powerful vacuum table and a unique global intelligent deviation correction system.

Its quiet operation, infrared safety sensor and fast transmission of data provide an ideal working environment for cutting corrugated plastic, PVC, cardboard, foamboard, styrene, honeycomb boards, leather, carpet, adhesive vinyl, paper, fabrics, etc. in an ample 63” x 98.4” (1600 × 2500 mm) cutting area.

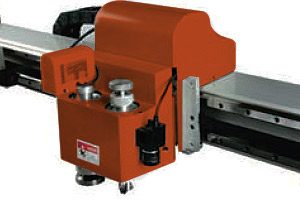

Easy to use tool changer

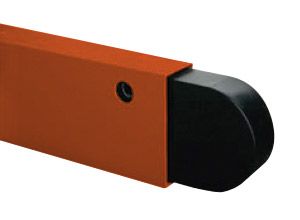

Infrared safety sensor
Powerful vacuum compressor
SID Katana 2516
Max. working area63” x 98.4” (1,600 × 2,500 mm)
Working materialsVarious flexible materials including various kinds of corrugated paper, PVC expansion sheets, adhesive vinyl, gum, photo frame paper, KT boards, grey boards, acrylic boards, cellular boards, thick foam, leather, shell fabric and foot pads, wire coils and so on.
CCD cameraStandard Configuration Capturing and Positioning by Gauge Points
Repeated accuracyLess than 0.03mm
Maximum speed47″/sec (1,200 mm/sec)
Cutting thickness0.2 to 60mm (0.0079 to 2.36″) depending on material
Motor typePanasonic Servo Motor and Servo Driver
InterfaceEthernet
Equipment dimensions122” x 98” (3,175 × 2,500mm)
Weight1,974 lbs (850 kg)
