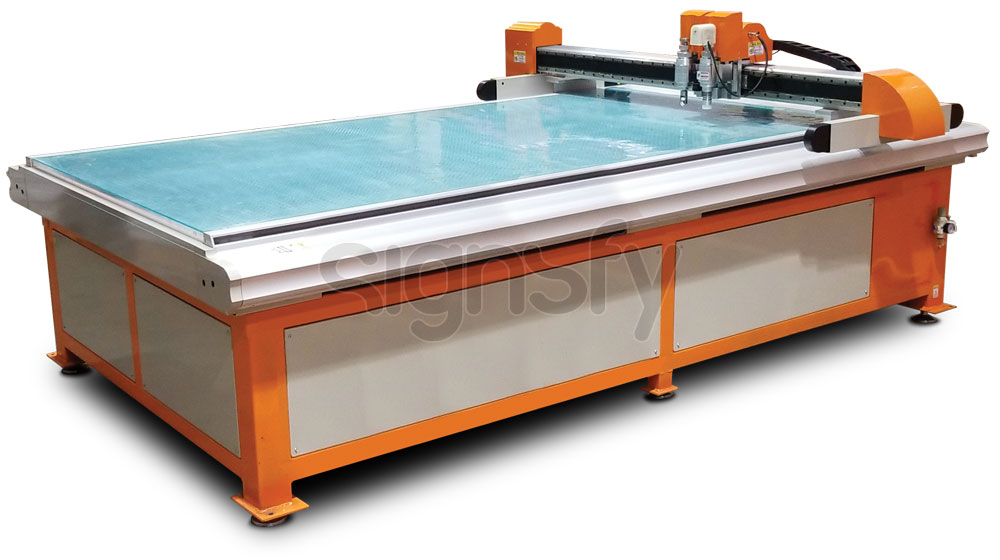

SID Katana 2513, Digital Flatbed Cutter

The state of the art SID Katana 2513 Digital Flatbed Cutter will streamline your graphic display finishing, packaging and POP production. With a maximum speed up to 47”/sec (1,200mm/sec), the USA manufactured high-end four axis motion control system guarantees precision with a cutting tolerance of 0.039” (1mm).

Please login or register to get prices

Professional graphics digital cutting system

  • Feature Icon
    up to
    1200
    mm/sec
  • Feature Icon
    .
    0.2~30
    mm

The state of the art SID Katana 2513 Digital Flatbed Cutter will streamline your graphic display finishing, packaging and POP production. With a maximum 1,200mm/sec, the USA manufactured high-end four axis motion control system guarantees precision with a cutting tolerance of 0.039” (1mm).

Its Panasonic servo motor and single drive, linear guideway, synchronized belt and lead screw, together with its innovative automatic maintenance systems, provide the reliability needed for high volume industrial production.

To ensure accurate contour cutting, the Katana includes an integrated CCD digital camera, a powerful vacuum table and a unique global intelligent deviation correction system.

Its quiet operation, infrared safety sensor and fast transmission of data provide an ideal working environment for cutting corrugated plastic, PVC, cardboard, foamboard, styrene, honeycomb boards, leather, carpet, adhesive vinyl, paper, fabrics, etc. in an ample 51” x 98.4” (1300 × 2500 mm) cutting area.
SID Katana 2513 | Digital Flatbed Cutter
File size: 1.05 MB
Updated: 25-02-2021
Download
Powerful vacuum compressor
SKU: SID KATANA 2513 Category: Tags: , , , , ,
SID Katana 2513
Max. working area 51” x 98.4” (1,300 × 2,500 mm)
Working materials Various flexible materials including various kinds of corrugated paper, PVC expansion sheets, adhesive vinyl, foam boards, leather, etc.
CCD camera Standard Configuration Capturing and Positioning by Gauge Points
Repeated accuracy Less than 0.03mm
Maximum speed 47″/sec (1,200 mm/sec)
Cutting thickness 0.2 to 30mm (0.0079 to 1.18″) depending on material
Motor type Servo Motor and Servo Driver
Interface Ethernet
Equipment dimensions 125” x 87” x 48″ (3,180 × 2,210 x 1,230mm)
Package dimensions 133” x 91” x 53″ (3,390 × 2,310 x 1,350mm)
Weight Net: 1,509 lbs (650 kg) • Gross: 1,974 lbs (850 kg)
