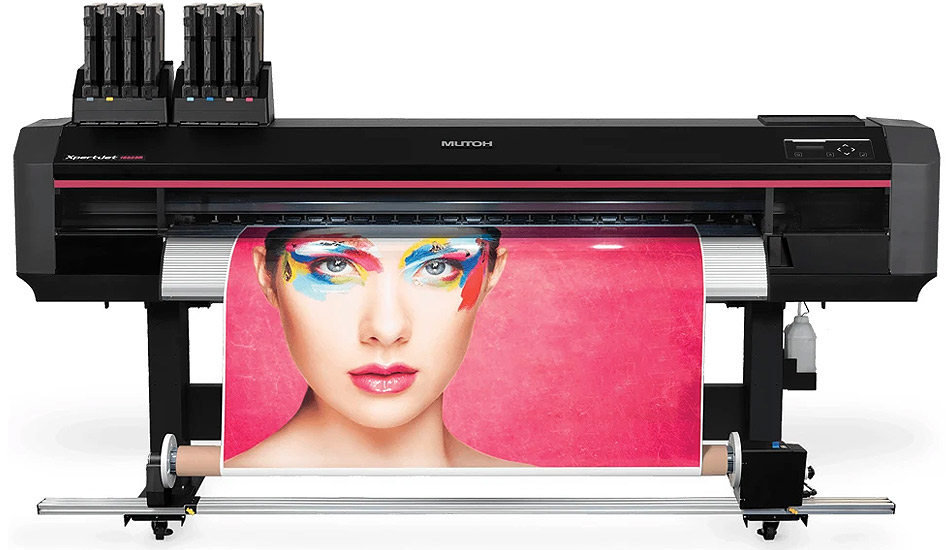

Mutoh XpertJet 1682SR, Eco-Solvent Printer


Creating durable prints on coated and uncoated substrates up to 1625 mm (63.97”), Mutoh’s XpertJet 1682SR wide format printer has been specifically developed for high quality volume production of sign and display graphics, for long term outdoor applications as well as durable prints for indoor use. The printer produces posters, backlit signage, wall coverings, point-of-sale displays, fine art reproduction, vehicle graphics, stickers and much more.

The dual head XpertJet 1682SR printer will push the boundaries of speed, quality and ease of use.

Built for professionals

  • Feature Icon
    up to
    1440
    dpi
  • Feature Icon
    up to
    935
    sq.ft/h

The XpertJet 1682SR 64 inch Eco-Solvent Printer from Mutoh has a staggered dual-head design that provides ultra-fast print speeds. It’s capable of producing smooth gradations while delivering high-quality printing, even with reduced resolution, thanks to the 7-color ink configuration (CMYK Lc Lm Lk).

The XPJ-1682SR is packed with features like automatic bi-directional alignments, a user-friendly touch panel, added LED lighting, and an upgraded media feed flange that allows operators to easily and quickly load media and exchange multiple rolls. These features are designed to increase user-friendly operation and maintenance while continuing to offer high production, high-quality output. The XPJ-1682SR is paired with Mutoh’s GREENGUARD Gold certified, MS41 Eco-Solvent ink, which allows you to install graphics into sensitive environments like hospitals, child care facilities and more, all while providing users a larger color gamut, outstanding durability, and improved dot gain.

XpertJet 1682SR
Printhead On-demand piezo drive system • 180 nozzles x 8 lines/head •  3.5 – 35 pl
Number of Printheads 2 piezo heads (staggered)
Resolution Up to 1,440 dpi
Ink MS41 inks – 300 ml & 1L packs / UMS11 inks – 1L packs
Max. printing width 63.6″ (1615 mm)
Take-up  System  30 or 40 kg motorized torque winder or 100 kg feed & take-up system
Media Mutoh XpertJet Sign & Display printers, creating durable prints on coated & uncoated substrates, have been specifically developed for high quality volume production of sign and display graphics, for long-term outdoor applications as well as durable prints for indoor use. The printers produce posters, backlit signage, wall coverings, point-of-sale displays, fine art reproduction, vehicle graphics, stickers and much more.
Print Speed Production Sweet Spot Speed Ragens: 51.6.3 – 161.2 sq.ft./h (4.8 – 15  m²/h)
Fast Production Range:  56.9 – 355.8 sq.ft./h (5.3 – 33.1 m²)
Maximum Speed: 517 – 935 sq.ft./h (48.1 – 87 m²/h)
RIP Software Included – Onyx RIPCenter Mutoh Edition or SAi FlexiPRINT SE Mutoh Edition
Power Supply Printer / Heater: AC 100-120 V / AC 200-240 V • 50 / 60 Hz
Interface Gb-Ethernet (1000BASE-T)
Operating Temperature Temperature 20ºC – 32ºC (68ºF – 89.6ºF) Humidity 40% – 60% – no-condensing
