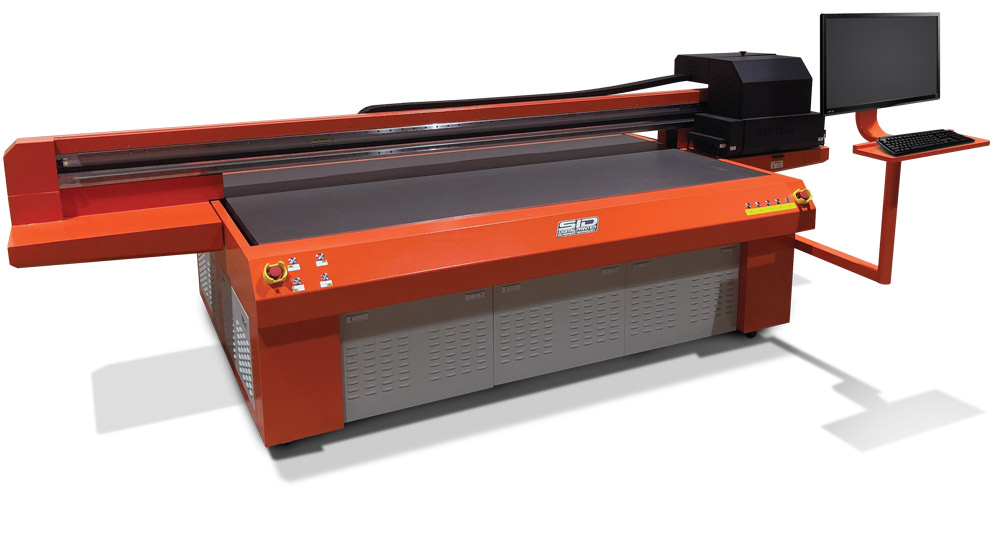

Galaxy Apollo UV Series, Flatbed UV Printer


The GALAXY APOLLO UV was designed for outdoor high resolution UV printing featuring automatic detection of media height, a double linear guide rail, anti-static protection and a new generation of Toshiba variable dot printheads.

Clear

Let the GALAXY APOLLO UV Printer bring the latest technology to your business

SID Galaxy Apollo UV, Flatbed UV Printer
  • Feature Icon
    up to
    4800
    dpi
  • Feature Icon
    up to
    7
    colors
  • Feature Icon
    up to
    516
    sq.ft/h
  • Feature Icon
    up to
    100
    mm

GALAXY UV flatbed printers open a new world of creative possibilities for printing on acrylics, glass, PVC, corrugated plastics, wood, metals, plastics, honeycomb boards, cabinet doors and ceramic tiles.

Powerful multiple individual vacuum zones ensure printing accuracy. Lower operating costs are built into the printer by long-lasting LED UV lamps. Anti-static, anti-collision and material thickness auto-detect features boost productivity and reliability.
Panasonic AC servo motor technology, Toshiba high resolution printheads and Japanese UV curable inks guarantee optimal quality and outdoor durability for graphics. The white ink option (spot, background or overprint layers) allows printing on a broad range of substrates.

Toshiba Ce4M Printhead

Up to 8x Toshiba CE4M Printheads | 636 nozzles

Scroll table
Scroll table
APOLLO 25T62 (with White)APOLLO 25T80
PrintheadToshiba CE4M 636 nozzles • Variable Dots 5 • 10 • 15 picoliters
Number of Printheads6 + 28
ResolutionUp to 4,800 dpi
InkUV | 1 liter per color
Number of colors7 colors (CMYK LcLm + W)4 colors (CMYK)
Max. printing area98″x 51″ (2,500 x 1,300 mm)
Max. media area98″x 51″ (2,500 x 1,300 mm)
Feeding SystemVacuum Table
Automatic Take up SystemIncluded
MediaPS, PVC, MDF, Foam Board, Aluminum, Acrylic, Glass, etc.
Print SpeedDraft • 6 passes: 258 sq.ft/h (24 m²/h)
Production • 8 passes: 215 sq.ft/h (215 m²/h)
Quality • 12 passes: 129 sq.ft/h (12 m²/h)
High Quality • 16 passes: 107 sq.ft/h (10 m²/h)
Draft • 6 passes: 516 sq.ft/h (48 m²/h)
Production • 8 passes: 430 sq.ft/h (40 m²/h)
Quality • 12 passes: 258 sq.ft/h (24 m²/h)
High Quality • 16 passes: 215 sq.ft/h (20 m²/h)
Cleaning SystemPositive pressure system and individual color purge controls
Maximum Carriage Height3.93” (100mm)
InterfaceUSB 3.0
RIP SoftwareFlexi Print 12
VoltageAC 220 V • 50 / 60 Hz
Power ConsuptionPrinter Power 4200W (20A) Vacuum Power 1500W (11A)
Operating TemperatureTemperature 20ºC – 28ºC (68ºF – 82ºF) Humidity 40% – 60% – no-condensing
Equipment dimensions152” x 85” x 47” (3,871 x 2,165 x 1,190 mm)
Package dimensions163” x 81” x 61” ( 4,150 x 2,050 x 1,550 mm)
Equipment weightNet: 1,157 lbs (525 kg)
Package weightNet: 2,105 lbs (955 kg)
